- 6-24V Multi-functional Auto Tester with LED Display
6510A6-24V Multi-functional Auto Tester with LED Display
Descriptions:

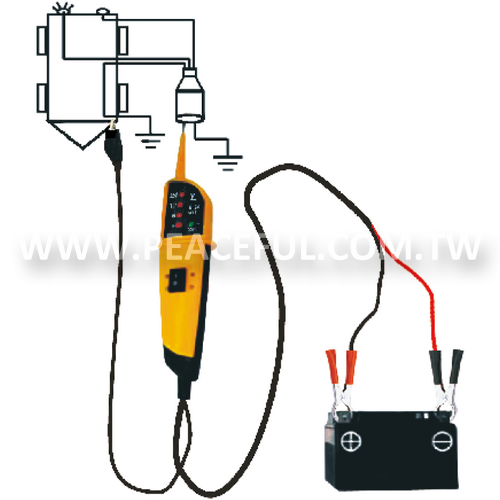

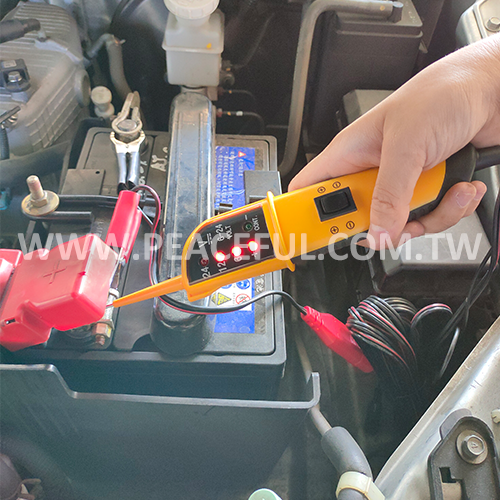

Test the automotive electrical system within 6-24V. In order to save the testing hours for the automotive electrical system, the tester is designed to test the system without re-connection between the vehicle battery and the testing components. For the testing and safety purpose, the tester contains short-circuit protection, which can also check the ground connection without voltage drop test. The short-circuit protection system contains the recoverable fuse, so the technician will not waste the fuses during the testing. The extension cable is long enough for a technician to test the whole system for the vehicle. Therefore, the technicians do not have to search for ground connection constantly.
Features:
- With CE Approval.
- Available to indicate polarity.
- Illumination for dark operation.
- 6,12 and 24V indicator with LED display.
- Activate the components with positive or negative current providing.
- Include alligator clips, a extended probe, a 0.85m ground lead and 2m extension lead.
Specifications:
| Extension Lead | Ground Lead | Cigarette Lighter Connector |
Alligator Clips |
Extended Probe |
|||
|---|---|---|---|---|---|---|---|
| 6510 | 6m (2 sets) | 0.85m | YES | YES | 1 PCS | ||
| 6510A | 2m (1 set) | 0.85m | NO | NO | 1 PCS | ||
