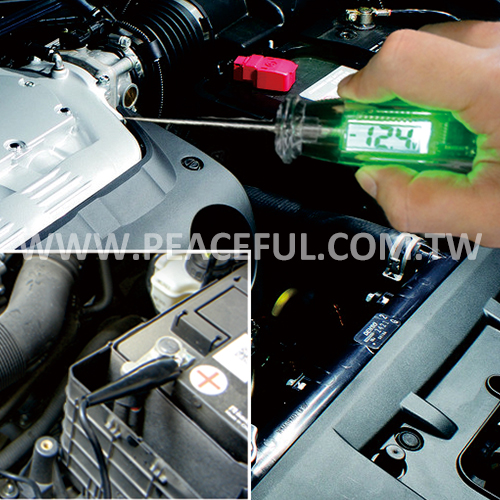

1674A12-48V Digital Display Circuit Tester
Descriptions:
Check on 12, 24 and 48V systems.
Features:
- With CE and UKCA Approval.
- Stainless steel testing probe.
- Spring cable, which is able to extend to 12FT.
- Digital display to read the accurate voltage value.
- LED indication for Power (Red) and Ground (Green).
Specifications:
| VOLTAGE MEASUREMENT | |
|---|---|
| MEASURED SYSTEM | 12-48V |
| VOLTAGE RANGE | 10-55V |
| TESTING CURRENT | < 10mA |
| DISPLAY | LCD |
| RESOLUTION | 0.1V |
| ACCURACY | ±(1%+3digits) |
| LED INDICATOR | Green (-) / Red (+) |
| CABLE LENGTH | Spring Cable, maximum 12FT |
| OPERATING ENVIRONMENT | |
| TEMPERATURE | -10-50°C |
| HUMIDITY | <80% |
