6435CVehicle Battery Charger

Descriptions:

This charger use microprocessor to monitor the charging process. Therefore it is a smart charger with protection of reverse connection, over-voltage, over-current, short circuit and over-charging. It has wide working temperature and it has IP54 protection.

Features:

  • With CE Approval.

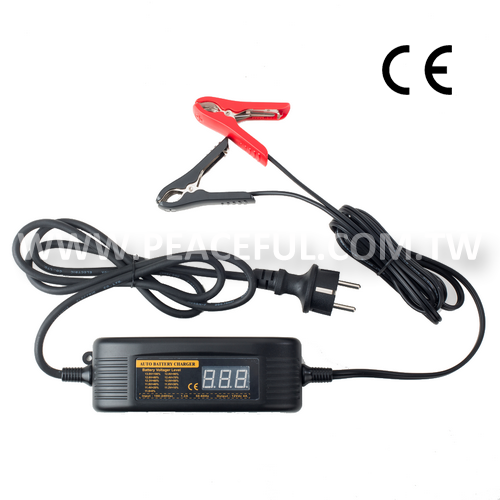

  • AC Power Plug (EU, IP44).
  • Alligator Clips (Red / Black).

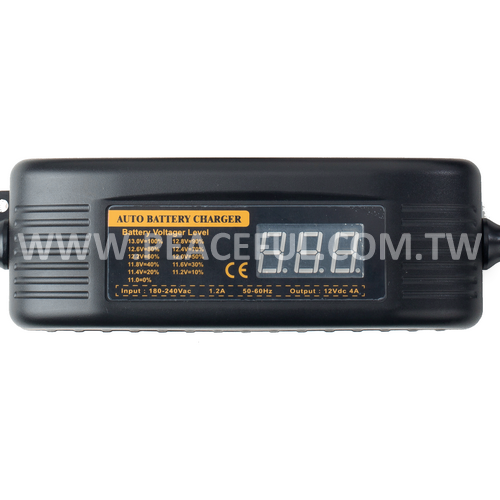

  • 3 digit LED display shows charging voltage.

Specifications:

VOLTAGE MEASUREMENT
INPUT VOLTAGE AC180-240V / 50-60Hz
INPUT CURRENT 1.2A
OUTPUT VOLTAGE 12V
MAXIMUM OUTPUT POWER 48W
OPERATING ENVIRONMENT
WORKING TEMPERATURE -10-40°C
STORAGE TEMPERATURE -20-70°C
WORKING HUMIDITY ≤ 90%
CHARGING METHOD: STAGE CHARGING
BATTERY ≤ 11V Constant small voltage charging.
BATTERY > 11V Constant voltage charging.
CHARGING CURRENT ≤ 1.5A ≦Constant small current charging.
CHARGING CURRENT ≤ 0.5A Pulse charging.
OTHER
BATTERY TYPE 12V Lead-Acid Battery
PRODUCT SIZE 170.5mm x 62.5mm x 47.5mm
IP Level IP54
INSTRUCTIONS
  1. Check battery voltage and volume (This charger can charge Lead-Acid battery only.)

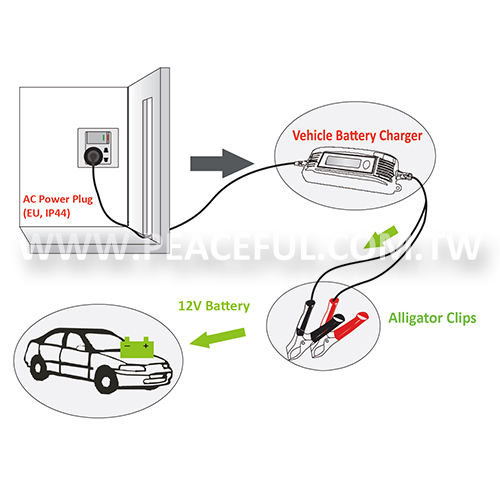

  2. Connect the AC power plug with AC power source.

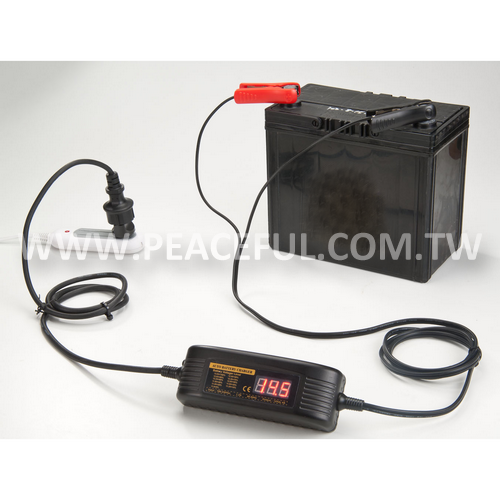

  3. Use alligator clips to connect with battery; red with positive and black with negative.
  4. This display will show the charging voltage and when battery is fully charged, the display will show "FUL".
  5. Please disconnect AC Power Plug first and then disconnect the battery after battery is fully charged.
  6. When AC power is connected, if battery connection is short or reversed in polarity, "ncc" will be shown.
