- 6-1000V AC/DC Multi-function Voltage Tester

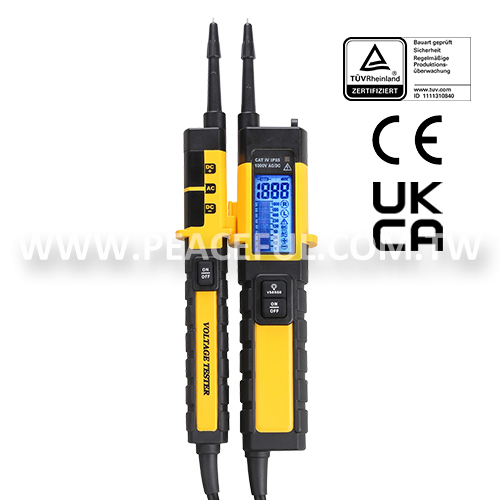

73406-1000V AC/DC Multi-function Voltage Tester
Descriptions:
Multi-function Voltage Tester is a professional 2-pole voltage tester, which provides electricians with a versatile high quality Voltage and Continuity tester. Suitable for checking DC 6-1000V and AC 24-1000V. CAT IV 1000V voltage category also for checking high voltage on electric / Hybrid vehicles.
Features Function:
1. AC / DC Polarity Measurement
2. Voltage Measurement
3. High Voltage Indication
4. Phase Rotation Test
5. Non-contact Voltage Sensing
6. Continuity Test
7. Illumination
Features:
- With GS and CE Approval.
- Protection class: IP 65
- Auto power off.
- LCD resolution 1V.
- Illumination for testing point.
- Display range: 6-1000VDC, 24-1000VAC.
- Probe cap to protect user and test probe.
- Dual switch for protection & function switch.
- Polarity indication LED lights up when voltage approximate ≧ 24V AC/DC.
Specifications:
HOW TO USE :

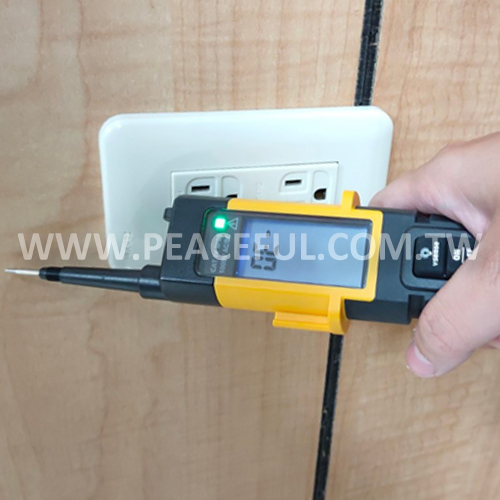

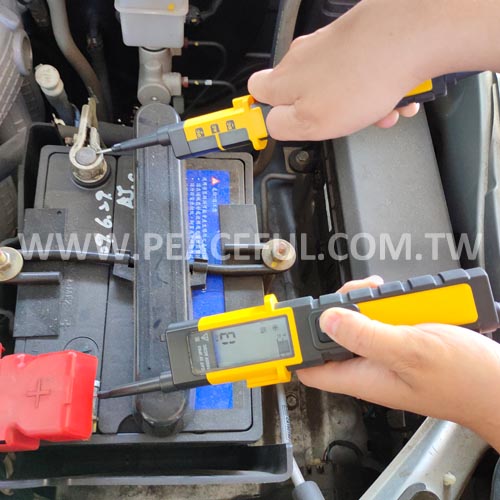

★ AC Voltage Measurement ★ DC Voltage/Poarity Measurement
★ Non-contact Voltage Sensing ★ Continuity Test
| VOLTAGE MEASUREMENT | |
|---|---|
| VOLTAGE RANGE | 6-1000VDC 24-1000VAC |
| VOLTAGE BAR INDICATION | 6/12/24/50/120/230/400/690/1000V |
| ACCURACY | ±(3%+3)V |
| RESPONSE TIME | < 1s at 90% each valtage |
| MAXIMUM CURRENT | < 3.5mA |
| HIGH VOLTAGE INDICATION | |
| VOLTAGE RANGE | 100V-1000V AC/DC |
| HIGH VOLTAGE INDICATION | |
| SYSTEM | Three-phase |
| VOLTAGE RANGE | ≧ 100VAC/ VDC |
| PHASE ANGLE | 120±5 degree |
| NON-CONTACT VOLTAGE SENSING | |
| VOLTAGE RANGE | >90VAC |
| CONTINUITY | |
| CONTINUITY RESISTANCE | 0~1.3MΩ |
| CONTINUITY CURRENT | ≦5μA |
| OPERATING ENVIRONMENT | |
| BATTERY | 3V (AAA 1.5V *2) |
| TEMPERATURE | 0-50℃ operation -10-60°C storage |
| HUMIDITY | MAX 85% RH |
| SAFETY | |
| CAT CATEGORY | CAT IV 1000V |
| GS LVD | EN 61243-3 |
| EMC | EN61326-1 |
| IP CODE | IP65 |
| POLLUTION LEVEL | 2 |
