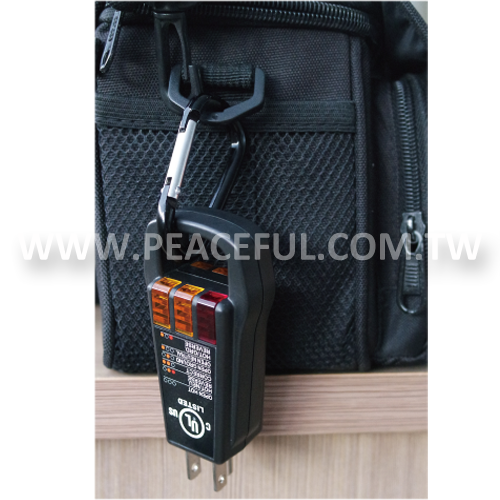

1938110-125V Receptacle Tester

Descriptions:

Test for 110-125V AC circuits.
Detect faulty wiring in 3 wire receptacle.

Features:

  • With UL and cUL Approval.
  • Detects probable improper wiring conditions of 110-125 AC.
  • Neon indicators give positive indication of circuit status.
  • Various combinations of three lights tell if wiring is correct or six possible faulty conditions.
  • Plug Type: TYPE B for US
  • Patented.

Specifications:

MEASUREMENT
INPUT VOLTAGE 120V ± 10%
OPERATING TEMPERATURE                                        5-40°C (41-104°F)
STORAGE TEMPERATURE -20-60°C (-4-140°F)
OPERATING HUMIDITY Max 80% with temperature up to 30°C (86°F);
linearly decreasing to 50% at temperature 40°C (104°F)
STORAGE HUMIDITY <80%
ALTITUDE <2000m (7000ft)
SIZE 108mm x 45mm x 28mm
INSTRUCTION
  1. Always test on a known good circuit before use.
  2. Refer all indicated problems to a qualified electrician.
  3. Lights will indicate circuit condition: Correct, Open Ground, Open Neutral, Open Hot, Hot/Ground Reversed, or Hot/Neutral Reversed.
  4. The tester will not indicate the quality of the ground connection, 2 hot wires in a circuit, a combination of defects, a combination of defects, or reversal of ground and neutral conductors.
