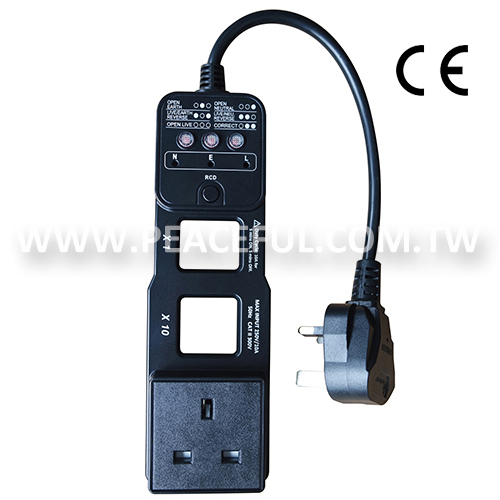

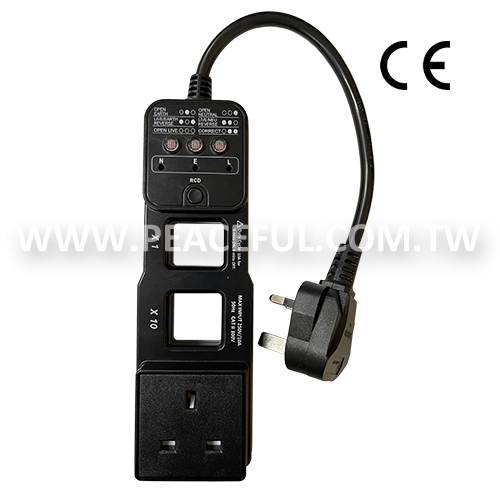

1937DAC Line Splitter
Descriptions:

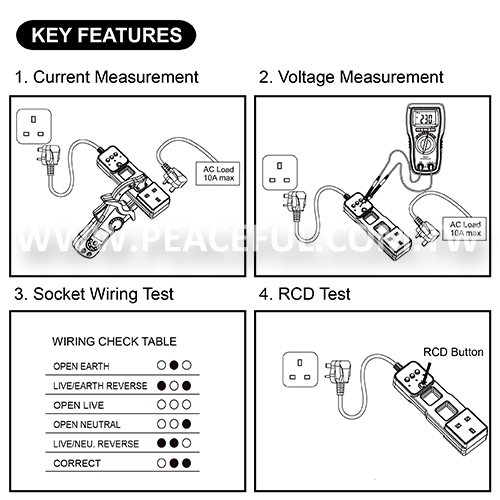

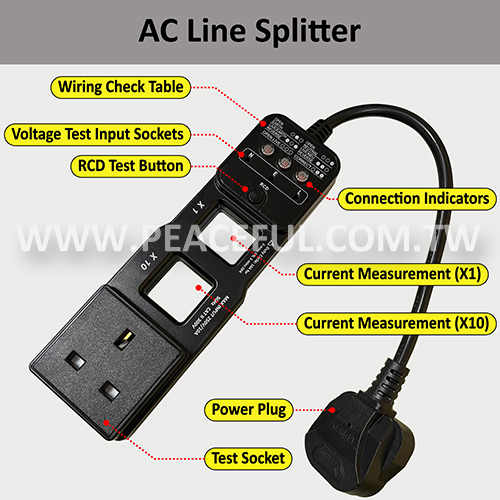

This tester combines a RCD tester and an AC line splitter in one tool. Key functions:

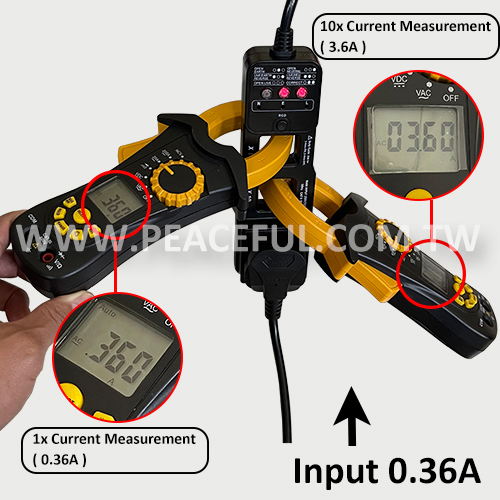

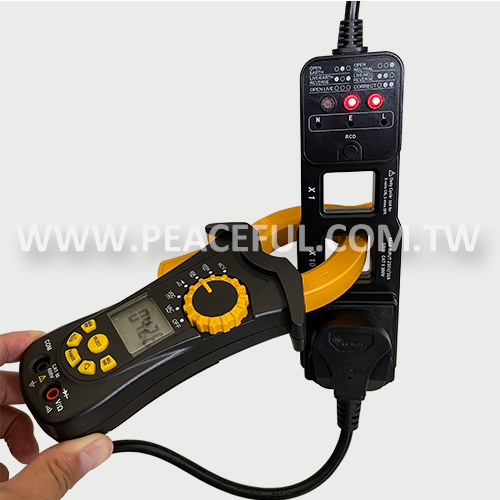

1. 2 rings for real current measurement (x1) and current multiplier (x10).
2. Terminals for voltage measurement.

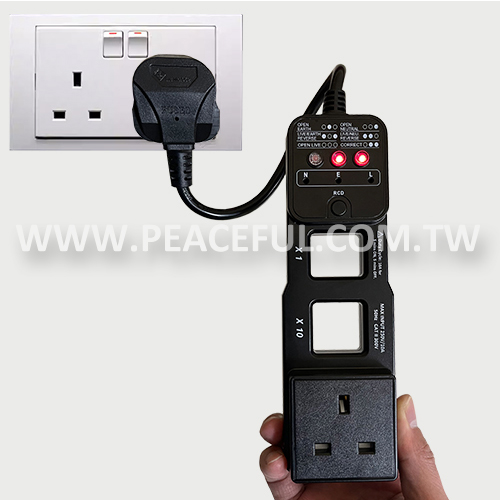

3. Detect faulty wiring in 3-wire receptacles.
4. Test RCD to verify proper operation.
Features:
- Input Voltage: 250VAC ± 10%; 50Hz
- Current: Maximum 10A
- Operating Temperature: 0 – 40°C (32 - 104°F)
- Storage Temperature: -20 – 60°C (-4 - 140°F)
- Operating Humidity: Max 80% with temperature up to 30°C (86°F);
- linearly decreasing to 50% at temperature 40°C (104°F)
- Storage Humidity: <80%
- Altitude: <2000m (7000ft)
- Safety Category: CAT II 300
- IP Rating: IP30
