7125Digital Multimeter

Descriptions:

This is a low power consumption, high accuracy and stable hand held multi-meter; with special designed IC to support true RMS measurement. It performs measurements of AC/DC voltage, DC current, resistance, diode and square wave output.

Features:

  • DC/AC Voltage Measurement
  • DC Current Measurement
  • Resistance Measurement
  • Diode Measurement
  • Square Wave Output
  • CAT CATEGORY: CAT III 300V / CAT II 600V

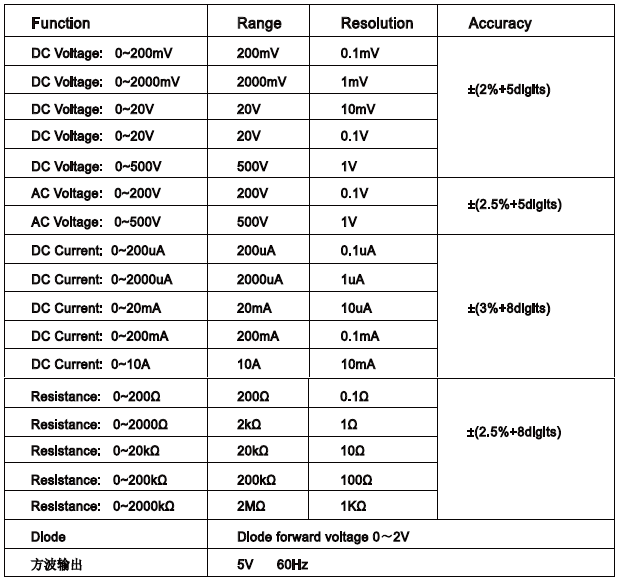

Specifications:

GENERAL SPECIFICATION
DC Voltage Range 0~500V DC
AC Voltage Range 0~500V AC
DC Current Range 0~10A
Resistance Range 0~2000kΩ
Diode Range 0~2000mV DC
Square Wave Output 5.3V(Peak to Peak) 60Hz

DC Voltage:0~500VDC

Range Resolution Accuracy
0~200 mV 0.1 mV ±(2%+5 digits)
0~2000 mV 1 mV
0~20V 10 mV
0~200V 0.1V
0~500V 1V

DC Current:0~10A

Range Resolution Accuracy
0~200 uA 0.1 uA ±(3%+8 digits)
0~2000 uA 1uA
0~20 mA 0.1 mA
0~200 mA 10 mA

Resistance:0~2000kΩ

Range Resolution Accuracy
0~200 Ω 0.1 Ω ±(2.5%+8 digits)
0~2000 Ω 1 Ω
0~20 kΩ 10 Ω
0~200 kΩ 100 Ω
0~2000 kΩ 1 kΩ
