- 600A Digital Clamp Meter

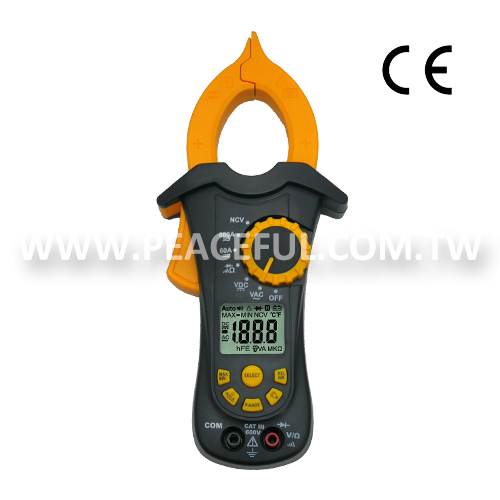

7128B600A Digital Clamp Meter
Descriptions:
This is a low power consumption, high accuracy and stable hand-held 6000 counts true-rms clamp meter.It performs measurements of DC voltage, AC voltage/current (TRMS), resistance, diode, continuity, capacitance, frequency, duty cycle, and non-contact voltage sensing. The meter has auto-sleeping function with 15 minutes inactivity.
Features:
- With CE Approval
- AC/DC Voltage Measurement
- AC Current Measurement
- Resistance Measurement
- Diode Measurement
- Continuity Measurement
- Non-contact Voltage Sensing
- Back-light and illumination
- AAA battery x 4

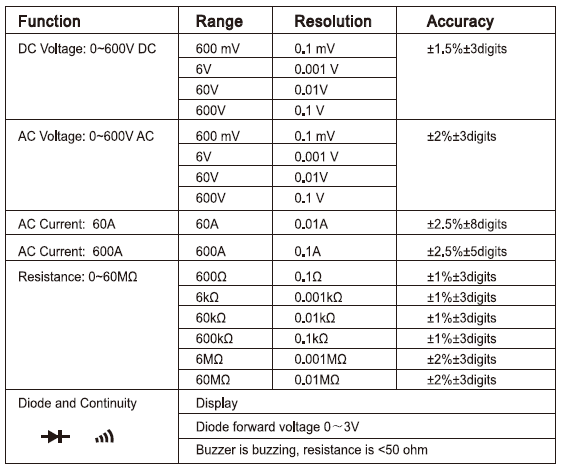

Specifications:
GENERAL SPECIFICATION |
||
|---|---|---|
Display |
LCD |
|
Maximum Resolution |
6000 3-6/7 digits |
|
Range |
Auto / Manual |
|
DC Voltage Range |
0~600V DC |
|
AC Voltage Range |
0~600V AC |
|
AC Current Range |
0~600A |
|
Resistance Range |
0~60MΩ |
|
Frequency Range |
0~9.999kHz |
|
DC Voltage:0~600VDC |
||
Range |
Resolution |
Accuracy |
| 600.0 mV | 0.1 mV | ±1%±2 digits |
| 6.000V | 0.001V | |
| 60.00V | 0.01V | |
| 600.0V | 0.1V | |
AC Voltage:0~600VAC |
||
Range |
Resolution |
Accuracy |
| 6.000V | 0.001V | ±1%±2 digits |
| 60.00V | 0.01V | |
| 600.0V | 0.1V | |
AC Current:0~600A |
||
Range |
Resolution |
Accuracy |
| 6.000A | 0.001A | ±2.5%±8 digits |
| 60.00A | 0.01A | |
| 600.0A | 0.1A | ±2.5%±5 digits |
Resistance:0~60MΩ |
||
Range |
Resolution |
Accuracy |
| 600.0Ω | 0.1Ω | ±1%±3 digits |
| 6.000kΩ | 0.001kΩ | |
| 60.00kΩ | 0.01kΩ | ±1%±1 digits |
| 600.0kΩ | 0.1kΩ | |
| 6.000MΩ | 0.001MΩ | |
| 60.00MΩ | 0.01MΩ | ±2%±3 digits |
Diode and Continuity |
||
| Diode Forward Voltage 0~3.3V | Continuity buzzing when resistance is < 50Ω | |
Capacitor:0~60.00mF |
||
Range |
Resolution |
Accuracy |
| 6.000nF | 0.001nF | ±3%±10digits |
| 60.00nF | 0.01nF | |
| 600.0nF | 0.1nF | |
| 6.000uF | 0.001uF | |
| 60.00uF | 0.01uF | |
| 600.0uF | 0.1uF | |
| 6.000mF | 0.001mF | |
| 60.00mF | 0.01mF | |
Frequency:0~9.999kHz |
||
Range |
Resolution |
Accuracy |
| 9.999Hz | 0.001Hz | ±1%±2digits |
| 99.99Hz | 0.01Hz | |
| 999.9Hz | 0.1Hz | |
| 9.999kHz | 0.001kHz | |
Duty Cycle |
||
Range |
Resolution |
Accuracy |
| 0~100% | 0.1% | ±1%±5digits |
