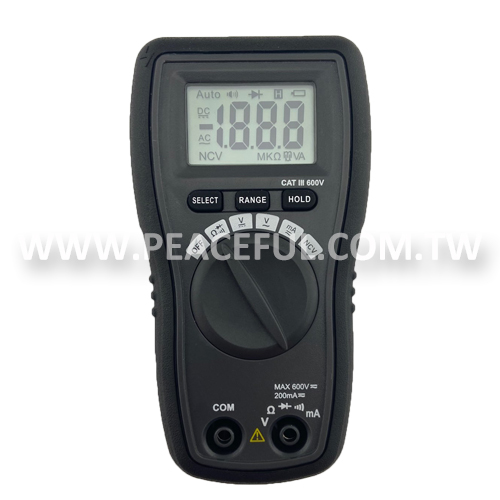

7124ADigital Multi-Meter

Descriptions:

This is a low power consumption, high accuracy, and stable hand held 3 1/2digits (2000 counts) multimeter; with special designed IC to support true RMS measurement. It performs measurements of DC voltage / current, true RMS AC voltage / current, resistance, diode, continuity, and non-contact voltage sensing.

Features:

  • With ETL&CE Approval
  • Category: CAT III 600V
  • Display LCD
  • Maximum Resolution: 2000, 3 1/2digits
  • Range: Auto / Manual
  • Data Refresh Rage: 3 times / sec
  • Measurement Rotation Switch
  • Continuity / Resistance / Diode
  • DC Voltage
  • AC Voltage
  • AC/DC Current
  • NCV(Non-contact voltage)
  • Power Source: 2 x 1.5V AAA Battery (With Low battery indication)

Specifications:

GENERAL SPECIFICATION

DC Voltage Range

 0~600V DC

AC Voltage Range

 0~600V AC

AC/DC Current Range

 1~199.9mA

NCV Range

 80~1000V AC

Resistance Range

 0~19.99MΩ
Diode Range  Forward biasing 0~1.5V

Continuity

 Buzzer will buzz when the resistance between two
 points is < 50 ohm. “OL” will be displayed when the
 resistance between two points is > 200 ohm.

DC Voltage: 0 ~ 600VDC

Range Resolution Accuracy
199 .9mV  0.1 mV ±(2%+2 digits)
1.999V 1 mV
19.99V 10 mV
199.9V 100 mV
600V 1V

AC Voltage: 0 ~ 600VAC

Range Resolution Accuracy
1.999V 1 mV ±(2%+2 digits)
19.99V 10 mV
199.9V 100 mV
600V 1V

DC Current: 1 ~ 199.9mA

Range Resolution Accuracy
19.99mA 10 uA ±1%±6digits
199.9mA 100 uA

DC Current: 1 ~ 199.9mA

Range Resolution Accuracy
19.99mA 10 uA ±2%±6digits
199.9mA 100 uA

Resistance: 0 ~ 19.99MΩ

Range Resolution Accuracy
199.9 Ω 0.1 ohm ±1%±3digits
1.999k 1 ohm ±1%±3digits
19.99k 10 ohm ±1%±1digits
199.9k 100 ohm ±1%±1digits
1.999M 1k ohm ±1%±1digits
19.99M 10k ohm ±2%±3digits
