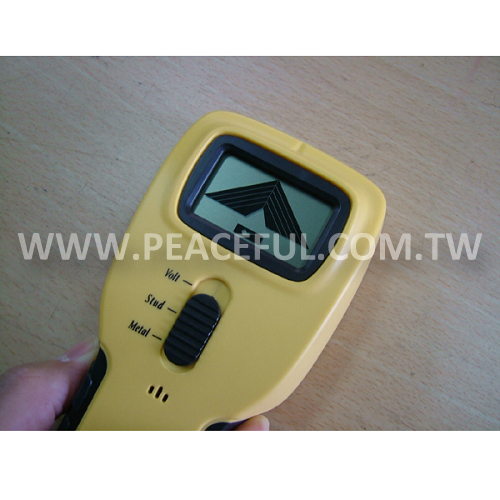

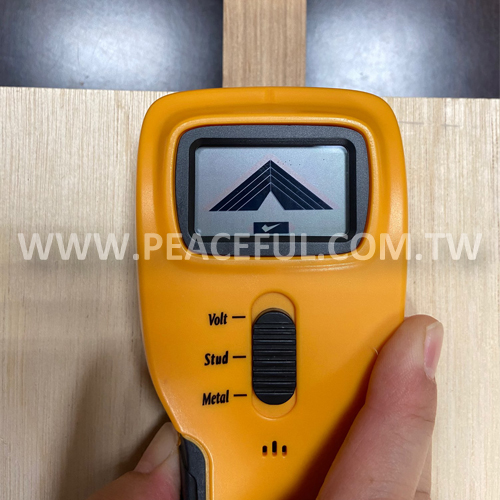

- 3 in 1 Metal/Voltage/Stud Detectors with LCD
63613 in 1 Metal/Voltage/Stud Detectors with LCD
Descriptions:
Detect the real position of voltage, metal and stud.
Features:
- With CE and RoHS Approval.

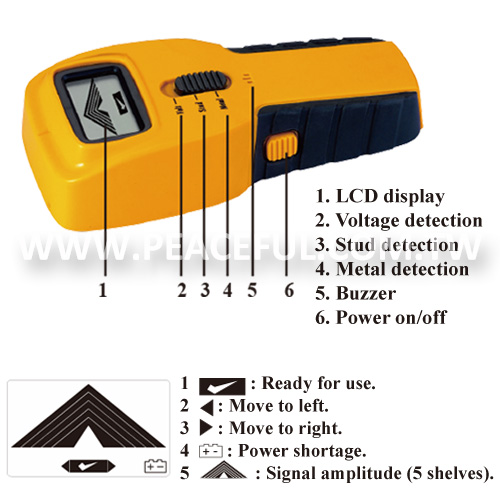

- Audible and visual indication.
- Operates on 6F22.9V battery x 1
- Voltage detection: to detect whether an object is electrifications.
- Stud detection: to locate real position of stud under wood block or plasterboard.
- Metal detection: Self-correcting sensitivity can help to detect and locate metal objects rapidly.
Specifications:
| MEASUREMENT | ||
|---|---|---|
| OPERATING CURRENT | Without buzzer sound: ≦ 6mA With buzzer sound: ≦ 40mA |
|
| DETECTION DISTANCE | ||
| METAL | 30-50mm (object size ≧ Ø 15x50mm) |
|
| STUD | 20mm (object size 100x30x30mm under woodblock or plasterboard) |
|
| VOLTAGE | AC 80-230V around 30-60mm (live electricity wire under 10mm thickness woodblock) |
|
| ENVIRONMENT | ||
| WORKING TEMPERATURE | 0-40°C | |
| HUMIDITY | ≦ 90% RH | |
| BATTERY | 9V, 6F22 | |
