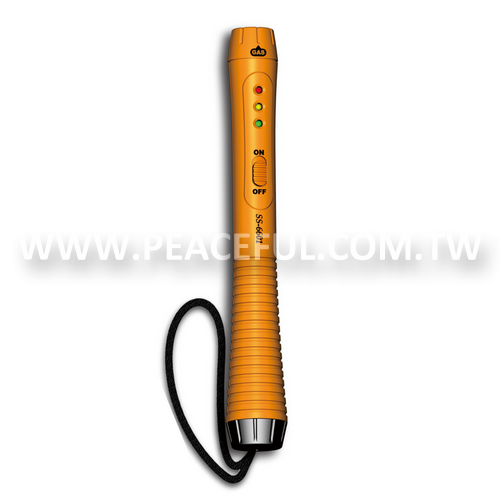

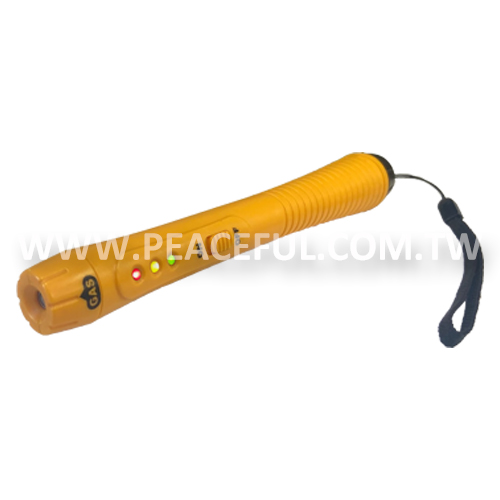

6601GAS Detector
Descriptions:
This detector is design to detect the concentration of flammable gas (natural gas [Methane], propane, butane, liquefied petroleum gas, liquefied natural gas). The concentration of GAS will be indicated by LED and buzzer voice. It's a helpful appliance for home, room and factory detection.
Specifications:
| MEASUREMENT | |||
|---|---|---|---|
| BATTERY | AAA x 2 | ||
| INDICATION LEVEL | 500 ppm, 2000 ppm | ||
| SENSOR LIFETIME | 5 Years | ||
| WORKING TEMPERATURE | 0-50°C (32-122°F) | ||
| WORKING HUMIDITY | < 90% RH | ||
| STORAGE TEMPERATURE | -20-60°C (-4-140°F) | ||
| STORAGE HUMIDITY | < 95% RH | ||
| REFERENCE | |||
| (1) Push the POWER SWITCH to start the detection; possible indications are listed following: | |||
| CONCENTRATION | INDICATION | BUZZER VOICE | |
| <500ppm | Green Light | No Voice | |
| 500-2000ppm | Green Light Yellow Light |
Slowly intermittently buzzing | |
| >2000ppm | Green Light Yellow Light Red Light |
Rapidly intermittently buzzing | |
| (2) Please change the battery when POWER INDICATION is flashing. | |||
| (3) The concentration is based on Methane; concentration of other gas may be different. | |||
